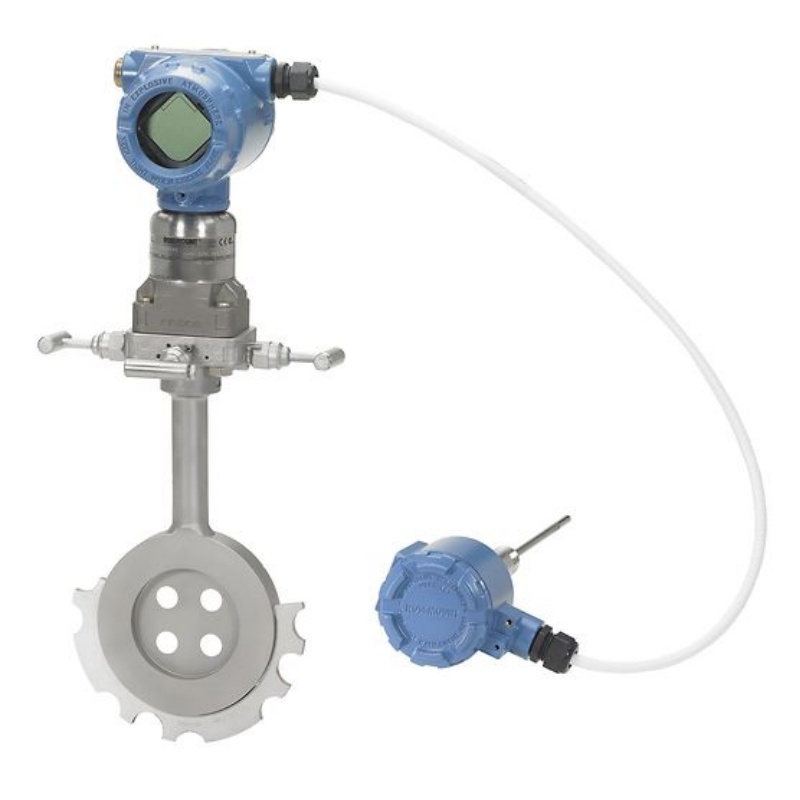

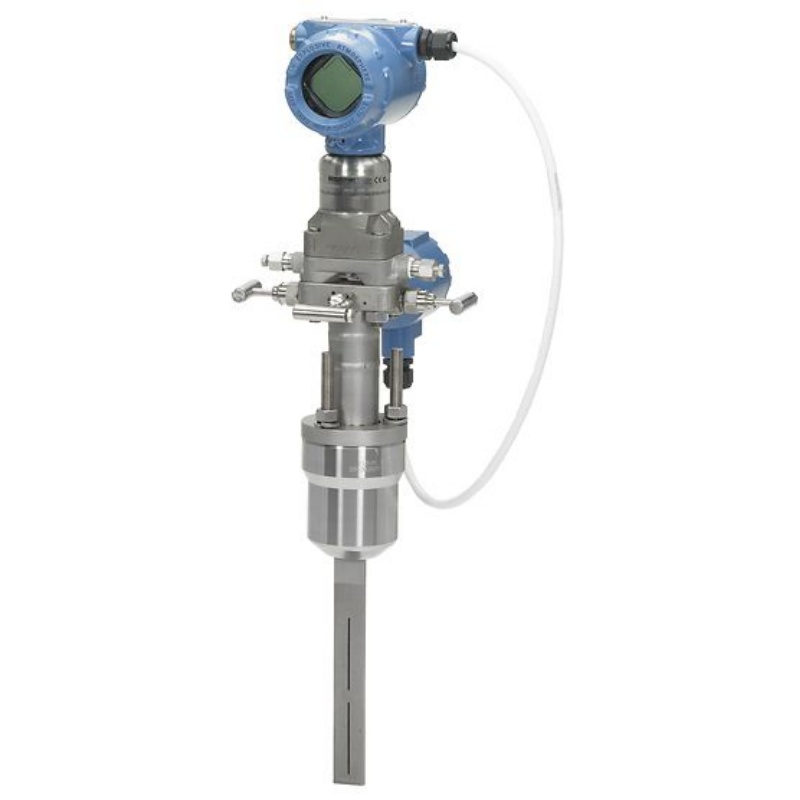

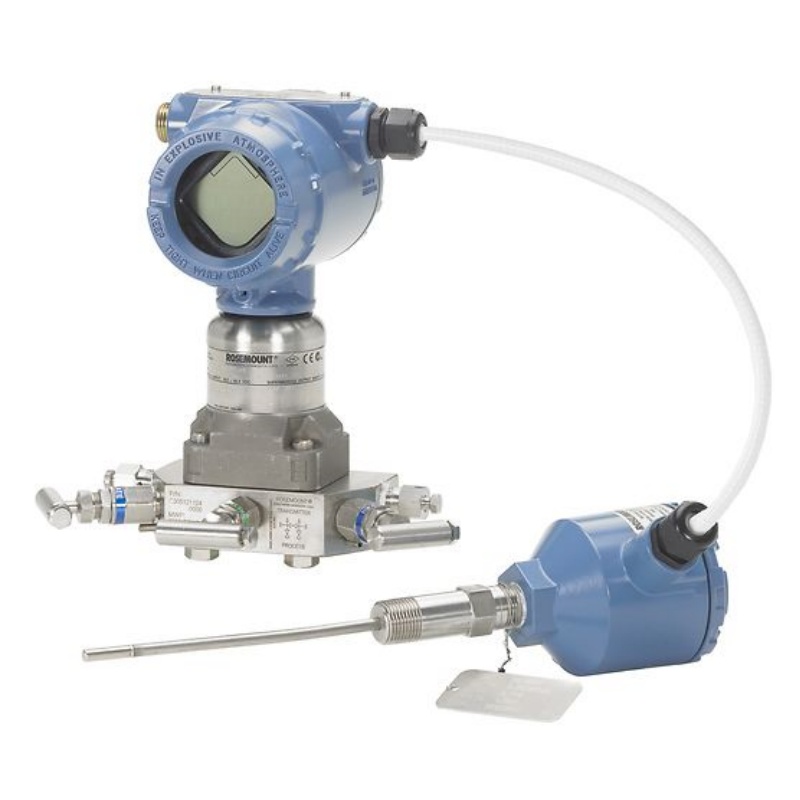

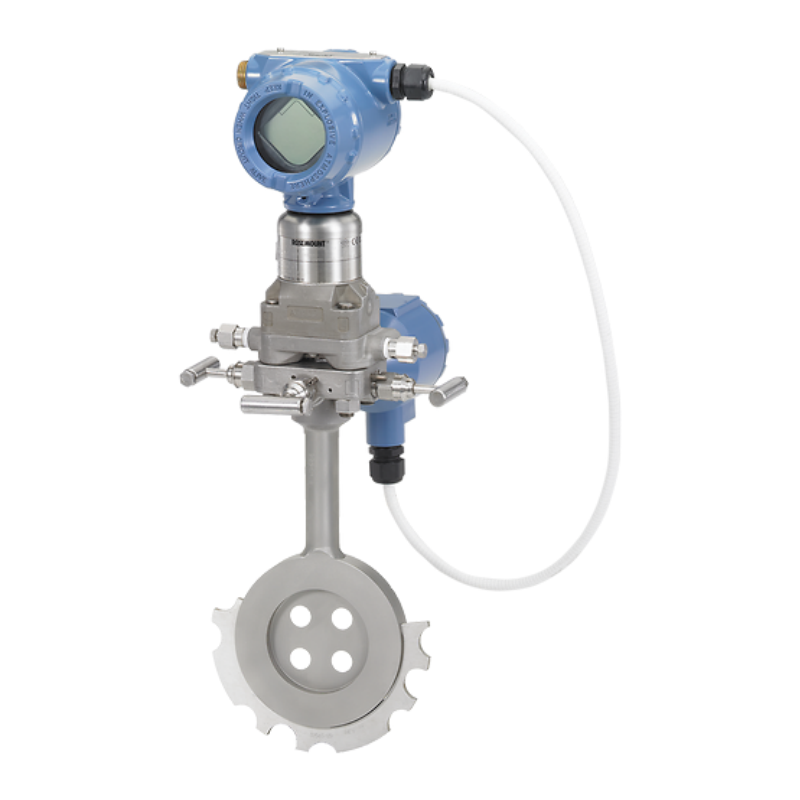

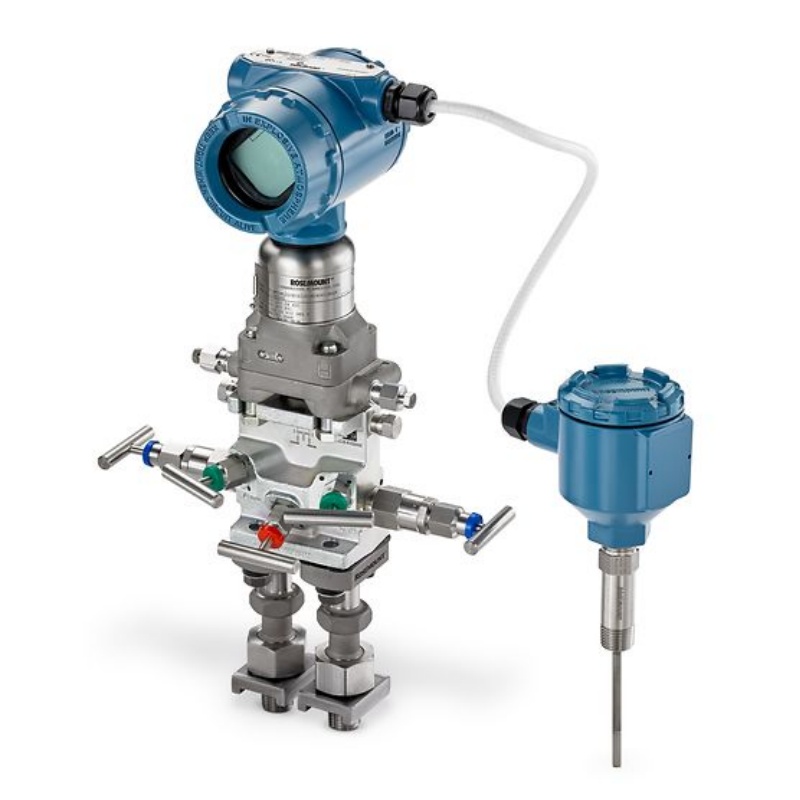

Rosemount 3051S MultiVariable Transmitter

The Rosemount 3051S MultiVariable Transmitter is a best-in-class solution customized to obtain measurement combinations of differential pressure, static pressure and process temperature. This multivariable transmitter is a cost-effective device that reduces pipe penetrations, impulse piping and connection systems. This device is also engineered with built-in flow calculations for fully compensated mass flow measurements.

Category: EMERSON ROSEMOUNT

Send Inquiry

Description

Specifications

Warranty	Up to 15-year limited warranty
Rangedown	Up to 200:1
Communication Protocol	4-20 mA HART™, WirelessHART®, FOUNDATION™ Fieldbus
Measurement Range	Up to 2000 psi (138 bar) differential, Up to 6092 psi (420 bar) static
Process Wetted Material	316L SST, Alloy C-276, Tantalum, Gold-plated 316L SST
Diagnostics	Basic Diagnostics
Certifications/Approvals	NSF, NACE™, hazardous location, see full specs for complete list of certifications
Features	Measures multiple variables and standardizes on a single model number for streamline process and cost-efficiency Reduces costs by eliminating the need for stacked transmitters and additional wiring Primary elements available as assemble-to options for simple installation and commissioning Multivariable design reduces pipe penetrations, impulse piping and connection systems for cost-savings Callendar-Van Dusen sensor matching improves temperature accuracy enabling best-in-class flow calculations All-welded, SuperModule™ design offers industry-leading accuracy in harsh environments and applications Engineering Assistant Software allows for configuration in two easy steps Ultra for Flow provides optimized flow readings with a ±0.04% of reading accuracy Designed with built-in flow calculations for direct reporting of fully-compensated mass, energy or volumentric flow
