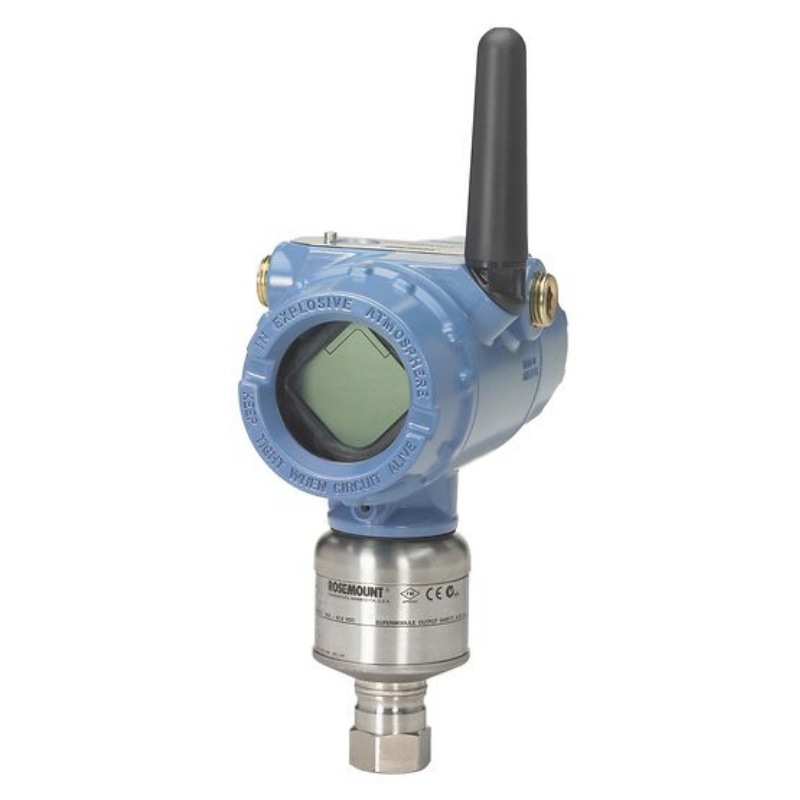

Rosemount 3051S Wireless In-Line Pressure Transmitter

The Rosemount 3051S Wireless In-line Pressure Transmitter redefines the performance of gage and absolute pressure measurement with its unparalleled features. Leveraging the advanced SuperModule™ platform, this transmitter offers remarkable scalability, effectively reducing process variability and maintenance needs. It seamlessly automates your operations with the secure and cost-effective WirelessHART® technology. Engineered for direct threaded connection, manifold, or seal system solutions, this in-line pressure transmitter guarantees dependable measurement and swift installation, delivering unmatched efficiency. Experience the cutting-edge capabilities of this transmitter for enhanced productivity and reliability.

Category: EMERSON ROSEMOUNT

Send Inquiry

Description

Specifications

Warranty	Up to 15-year limited warranty
Rangedown	Up to 200:1
Communication Protocol	WirelessHART®
Measurement Range	Up to 10000psi (689,47 bar) Gage, Up to 10000psia (689,47 bar) Absolute
Process Wetted Material	316L SST, Alloy C-276
Diagnostics	Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
Certifications/Approvals	NSF, NACE, hazardous location, see full specs for complete list of certifications
Update Rate	1 sec. to 60 min., user selectable
Power Module Life	Up to 10-year life, field replaceable (order separately)
Wireless Range	Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)
Features	No-equal, scalable architecture optimizes performance, functionality and process connections WirelessHART® technology is secure, cost-effective and delivers >99% data reliability Designed with direct threaded connections or manifolds and remote seals for a quick and cost-effective installation Ultra and Classic Performance classes provide accuracy up to 0.025% of span 15-year stability and 200:1 rangedown produce reliable measurements and wide application flexibility Piezoresistive sensor technology allows calibrated spans from 0.3 to 10000 psi (20.7 mbar to 689 bar) 15-year warranty for worry-free operation SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal Easy installation enables quick instrumentation of measurement points without the cost of wiring

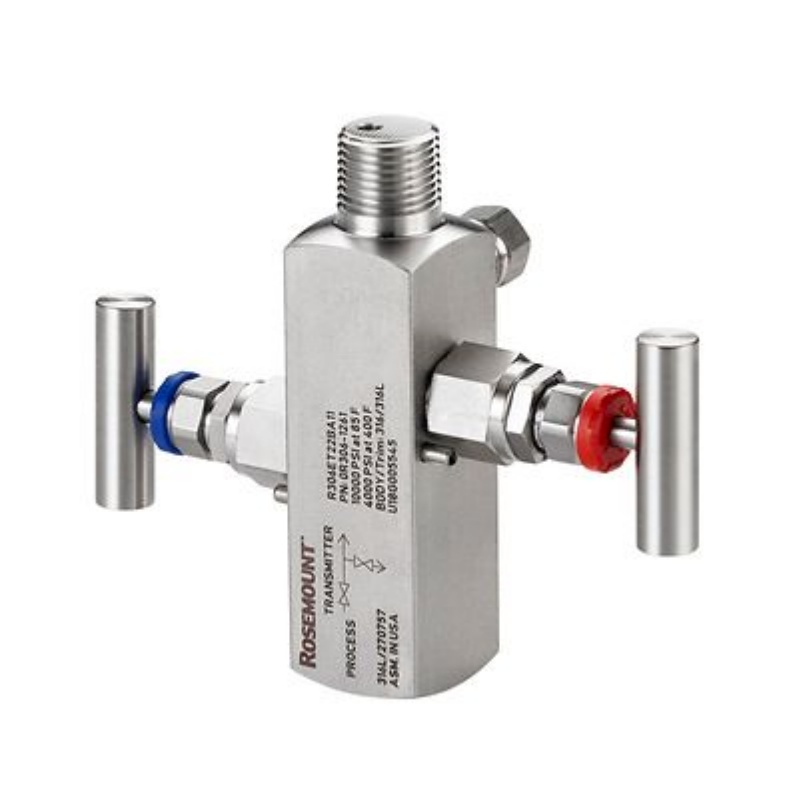

The Rosemount R306 direct connected valve group can be directly assembled with a direct connected pressure gauge or absolute pressure transmitter. Pressure Lock ™ The valve is specifically designed for Rosemount R305 and R306, simplifying operation, improving reliability, and enhancing operator safety. The R306 valve group can provide a two valve configuration to achieve instrument isolation and drainage/exhaust functions.

Specifications

Maximum working pressure	10000 psi (689 bar)
Maximum working temperature	399 ° C (750 ° F)
Valve group material	316 stainless steel/316L stainless steel
Filler materials	PTFE, graphite
Process connector	1/2 “-14 NPT female thread
Direction	parallel to the transmitter
Certification	is applicable for special services and acidic gases (in compliance with the NACE MR 0175/ISO 15156, MR0103 standards). Please refer to the complete specifications for a complete certification list
Warranty	up to 5 years Limited warranty
