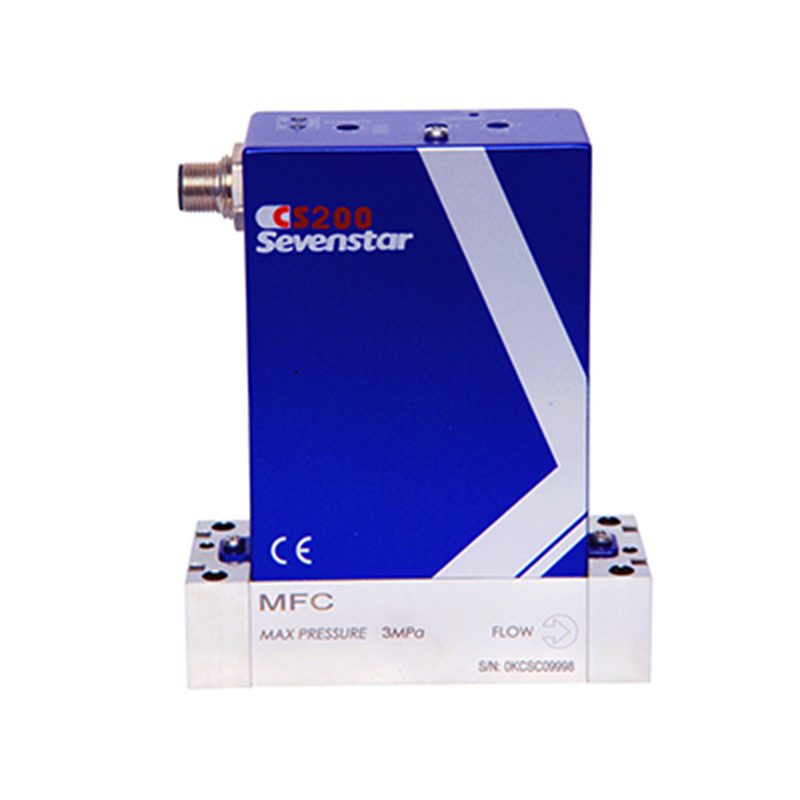

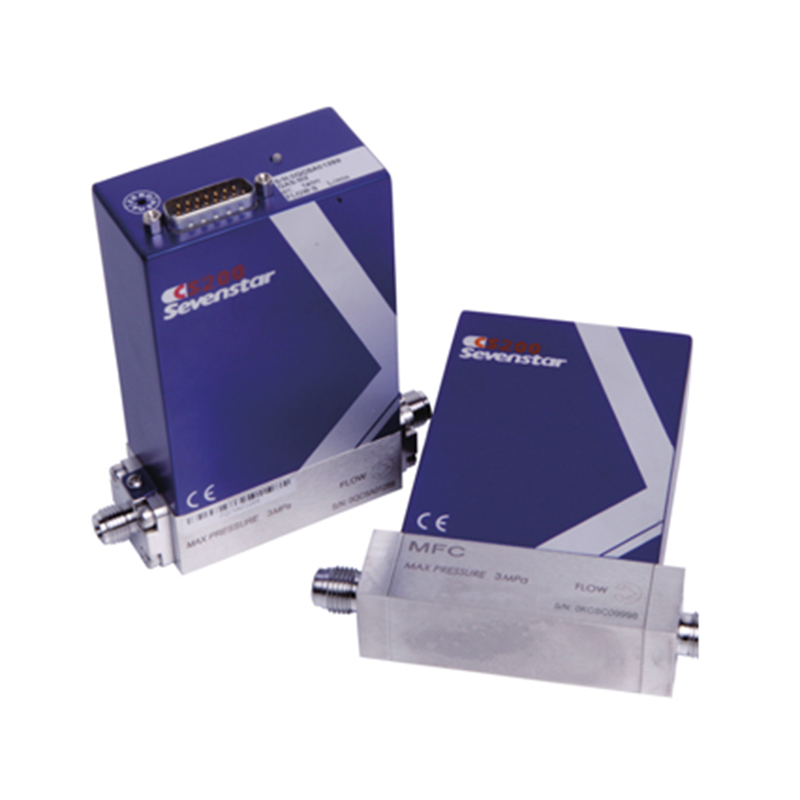

Sevenstar Mass Flow Controller CS200 MFC
The CS200 MFC offers improved accuracy with a tolerance of ±1.0% of S.P., and advanced models feature a reduced response time of less than 0.8 seconds.
Description
Specification
| Type | CS200A | CS200C | CS200D | CS210A | CS210-D | |
| Full scale range (N2) |
( 0～5,10,20,30,50,100,200,300,500)SCCM
( 0～1,2,3,5,10,20,30,50)SLM
|
( 0～5,10,20,30,50,100,200,300,500)SCCM
( 0～1,2,3,5,10,20,30)SLM
|
( 0～5,10,20,30,50,100,200,300,500)SCCM
( 0～1,2,3,5,10,20,30,50)SLM
|
|||
| Accuracy | ±1.0% F.S(＜35% F.S.) | ±0.35% F.S(＜35% F.S.) | ||||
| Linearity | ±0.5% F.S. | |||||
| Repeatability | ±0.2% F.S. | |||||
| Response Time | ≤1sec | ≤0.8 sec (SEMI E17-0600) | ≤1sec | ≤ 0.8 sec (SEMI E17-0600) | ||
| Valve Rest Position | Normally Closed or Normally Open(100 sccm≤F.S.≤5 slm) | No Valve | Normally Closed or Normally Open(100 sccm≤F.S.≤5 slm) | No Valve | Normally Closed or Normally Open(100 sccm≤F.S.≤5 slm) | No Valve |
| Differential Pressure |
0.05～0.35MPa (Flow≤10slm)
0.1～0.35MPa (10slm＜Flow≤30slm)
0.2～0.45MPa (Flow＞30slm)
|
＜0.02MPa |
0.05～0.35MPa (Flow≤10slm)
0.1～0.35MPa (＞10slm)
|
＜0.02MPa |
0.05～0.35MPa (Flow≤10slm)
0.1～0.35MPa (＞10slm)
|
0.05～0.35MPa (Flow≤10slm)
0.1～0.35MPa (＞10slm)
|
| Maximum Pressure Working | 0.45MPa | |||||
|
Temperature
Coefficient
|
Zero:≤±0.05% F.S./℃;
F.S./℃ (Flow≤30slm)
≤±0.2% F.S./℃ (Flow>30slm)
|
Span: ≤±0.1% | Zero:≤±0.02% F.S./℃; Span:≤±0.05% F.S./℃ |
Zero:≤±0.05% F.S./℃;
Span: ≤±0.1% F.S./℃ （Flow≤30slm）
Span: ≤±0.2% F.S./℃ （Flow>30slm）
|
Zero:≤±0.02% F.S./℃;
Span:≤±0.05% F.S./℃
|
|
| Proof Pressure | 3MPa (435pisg) | |||||
| Leak integrity | 1×10-9 atm·cc / sec He | 1×10-10atm·cc / sec He | 1×10-9 atm·cc / sec He | 1×10-10 atm·cc / sec He | ||
| Wetted Materials | Viton | Metal?(Stainless Steel V/V, 5Ra) | Metal | Viton | Metal | |
| Surface Chemistry | – | Cr/Fe ratio ＞2.0; CrO thickness ＞20 Angstroms | – | |||
| Operation Temperature | （5～45）℃ | （0～50）℃ | （5～45）℃ | |||
| Input Signal | Digital: RS485 or ProfiBus or DeviceNetTM Analog:(0～5)VDC or (4～20)mA or(0～20)mA | N/A | Digital: RS485 or ProfiBus or DeviceNetTM Analog:(0～5)VDC or (4～20)mA or (0～20)mA | N/A | Digital: RS485 or EtherCAT | N/A |
| Output Signal | Digital: RS485 or DeviceNetTMor ProfiBus or EtherCAT | Analog:(0～5)VDC or (4～20)mA or (0～20)mA | Digital: RS485 or EtherCAT | |||
| Power Supply | ±8 ~ ±16 VDC or +14 ~ +28 VDC(400mA) | +20.4 ~ +26.4 VDC | ||||
| Fittings |
VCR1/4” M； VCO1/4” M；
Compression FittingΦ10;Compression FittingΦ6；
Compression Fitting 3/8”; Compression Fitting1/4”；
Compression Fitting1/8”; Compression FittingΦ3；
Ф6(inner)×1hose;ф5(inner)×1.5hose;ф4(inner)×1hose;W-seal，A-sael ;
|
VCR1/4” M;
Compression FittingΦ6,
Compression FittingΦ3,
Compression Fitting1/4”，
W-seal，C-seal
|
VCR1/4” M； VCO1/4” M；
Compression FittingΦ10;Compression FittingΦ6；
Compression Fitting 3/8”; Compression Fitting1/4”；
Compression Fitting1/8”; Compression FittingΦ3；
Ф6(inner)×1hose;ф5(inner)×1.5hose;ф4(inner)×1hose;
A-sael ;
|
VCR1/4” M;
Compression FittingΦ6,
Compression FittingΦ3,
Compression Fitting1/4”，
W-seal，
C-seal
|
||
| Electronic Connector | 9 pin male sub-D ，15 pin male sub-D ，DeviceNetTM，ProfiBus ，Analog | 9 pin male sub-D , EtherCAT | ||||
| Surface Finish | 25Ra | 10Ra | 25Ra | |||
| Weight | 1 Kg | 0.8 kg | 1.2 Kg | 1 Kg | 0.8 Kg | 1 Kg |
Features:
- Enhanced Accuracy and Rapid Response
The CS200 MFC offers improved accuracy with a tolerance of ±1.0% of S.P., and advanced models feature a reduced response time of less than 0.8 seconds. - Low Zero Drift and Temperature Coefficient
Utilizing innovative sensor technology, the CS200 MFC maintains stability and withstands temperature fluctuations. Without an auto-zero amplifier, it exhibits minimal zero drift of less than 0.6% F.S./year and a temperature coefficient of less than 0.02% F.S./℃ (zero) and 0.05% F.S./℃ (span). - Metal-Sealed Models and High Purity Feature
The wetted flow path of the CS200 MFC is constructed from surface-passivated stainless steel, ensuring high purity. All CS200 MFCs are assembled in ultraclean Class 100 cleanrooms according to SEMI and ISO 9001 standards. - Compatible Interfaces
The CS200 MFC supports various interfaces that can be selected by the customer, including ±8V to ±16V dual-end power supply or +14V to +28V single-end power supply. It is compatible with digital or analog signal input and output, adheres to SEMI standard mechanical dimensions, and can be equipped with an RS-485 or DeviceNet communications module. - Additional Functions
Each model of the CS200 MFC includes powerful customer software as standard, with additional functions such as support for multi-gas and multi-range applications, auto-zero capability, alarms, soft start, and delay, which can be selected based on customer requirements.
