Siemens pressure transmitter LH100

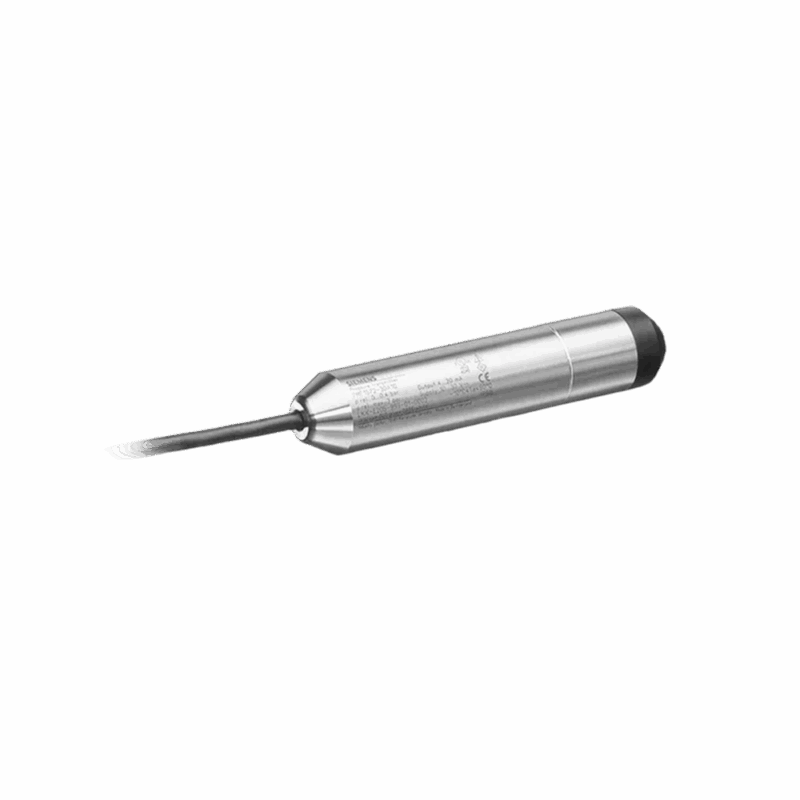

The SITRANS LH100 pressure transmitter is a well probe that converts level-proportional hydrostatic pressure into a standard 4-20 mA signal. It is designed to measure levels in basins, containers, canals, and dams. The transmitter features a stainless steel housing and a piezoresistive sensor with a ceramic membrane. It is available in a wide range of measuring ranges and can be supplied with explosion-protection, if required.
The SITRANS LH100 pressure transmitter is a well probe that converts level-proportional hydrostatic pressure into a standard 4-20 mA signal. It is designed to measure levels in basins, containers, canals, and dams. The transmitter features a stainless steel housing and a piezoresistive sensor with a ceramic membrane. It is available in a wide range of measuring ranges and can be supplied with explosion-protection, if required.
- Easy installation and use due to compact design and corrosion-resistant material
- Safe application due to vent pipe in connection cable to prevent condensate formation
- Long service life due to protection of the measuring diaphragm against external influences by protective cap
Standard measuring set: Transmitter, cable hanger, junction box
| Accuracy | 0.3 % |
| Long-term stability | 0.25 % / 12 months |
| Measuring range | 0 – 3 mH2O to 0 – 20 mH2O |
| Housing |
316L stainless steel housing (Ø 23.4 mm), IP68 rated
|
| Cable | PE sheathing; Ø 6 mm with vent pipe |
| Cable length |
standard 10, 20, or 30 m, special lengths up to 50 m possible
|
| Certificates/approvals |
Explosion-protected version according to IEC Ex and ATEX approvals
|
