Siemens pressure transmitter LH300

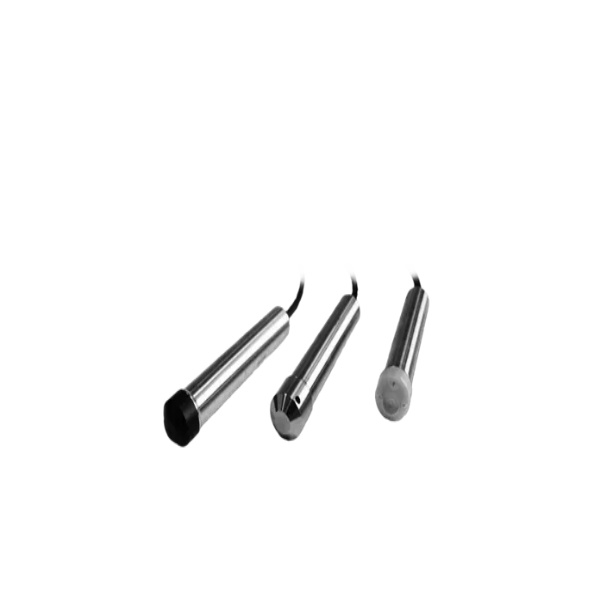

The SITRANS LH300 is a well probe for hydrostatic level measurement, featuring protective caps made of PPE, stainless steel, or ETFE. The transmitter converts the pressure into a standard 4-20 mA signal. The SITRANS LH300 is suitable for use in tanks, channels, dams, and drinking water systems, thanks to its stainless steel housing and piezoresistive sensor with a ceramic membrane.
The SITRANS LH300 is a well probe for hydrostatic level measurement, featuring protective caps made of PPE, stainless steel, or ETFE. The transmitter converts the pressure into a standard 4-20 mA signal. The SITRANS LH300 is suitable for use in tanks, channels, dams, and drinking water systems, thanks to its stainless steel housing and piezoresistive sensor with a ceramic membrane.
Benefits
- Easy installation and use due to compact design and corrosion-resistant material
- Safe application due to vent pipe in connection cable to prevent condensate formation
- Long service life due to protection of the measuring diaphragm against external influences by protective cap
Standard measuring set: Transmitter, cable hanger, junction box
| Accuracy | 0.15 % |
| Long-term stability | 0.15 % / 12 months |
| Measuring range | 0 – 1 mH2O to 0 – 40 mH2O |
| Housing | 316L stainless steel housing (Ø 29 mm), IP68 rated |
| Diaphragm | 99.6 % ceramic |
| Cable | PE sheathing; Ø 6 mm with vent pipe |
| Cable length |
standard 5, 10, 20, 30 or 50 m, special
lengths up to 1000 m are possible
|
| Certificates/approvals | Explosion-protected version according to IEC Ex and ATEX |
