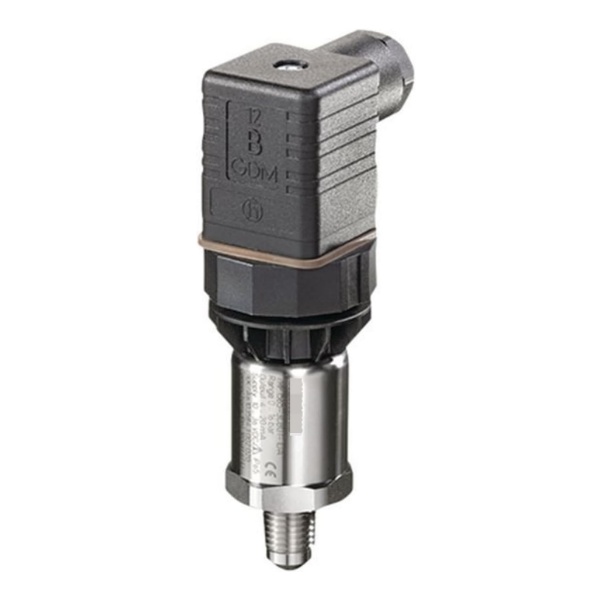

Siemens pressure transmitter P200/P210/P220
The SITRANS P200, P210 and P220 are compact, single-range pressure transmitters for measuring absolute and gauge pressure. These series utilize either stainless steel or ceramic diaphragm sensors, allowing for versatile pressure measurements such as process, absolute, and hydrostatic pressure. The measured pressure can be output as a 4-20 mA or 0-10 V signal.
Description
The SITRANS P200, P210 and P220 are compact, single-range pressure transmitters for measuring absolute and gauge pressure. These series utilize either stainless steel or ceramic diaphragm sensors, allowing for versatile pressure measurements such as process, absolute, and hydrostatic pressure. The measured pressure can be output as a 4-20 mA or 0-10 V signal.
Benefits
- Robust by rugged stainless-steel enclosure and compact design
- High overload capacity
- Suited for a broad range of application: for aggressive and non-aggressive media as well as for measuring the pressure of liquids, gases and vapors
| Nonlinearity | ≤ 0.25 % |
| Long-term stability |
≤ 0.25% / 12 Monate stability
|
| Measuring range |
SITRANS P200: 1 bar to 60 bar gauge, 0.6 bar to 16 bar absolute
SITRANS P210: 100 mbar to 600 mbar gauge
SITRANS P220: 2,5 bar to 1000 bar gauge
|
