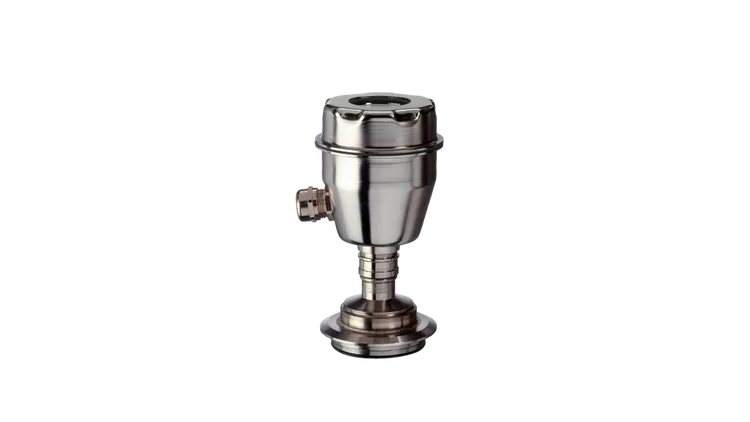

Siemens pressure transmitter P300
The SITRANS P300 pressure transmitter offers both precision and ruggedness. Its stainless steel housing with laser-printed nameplate, along with a variety of hygienic process connections, make it well-suited for use in food & beverage and pharmaceutical applications.
Description
The SITRANS P300 pressure transmitter offers both precision and ruggedness. Its stainless steel housing with laser-printed nameplate, along with a variety of hygienic process connections, make it well-suited for use in food & beverage and pharmaceutical applications.
Benefits
- With hygiene (EHEDG, 3A), material and calibration certificates eminently suited to the food and beverage and pharmaceutical industry
- Especially suitable for degrees of protection to IP68 and IP69K, CIP/SIP cleaning, and highly viscos measuring media
- Broad application opportunities by measurement cells for gauge and absolute pressure
- Easy cleaning by measurement cells with flush mounted diaphragm
- Optimized process control by extended simulations and diagnostic
| Accuracy | ≤ 0.075 % |
| Long-term stability | ≤ 0.25 % / 60 months |
| Measuring range |
0 – 10 mbar (0 – 4 inchH2O) to 0 – 400 bar (0 – 5800 psi)
|
| Communication | HART or PROFIBUS PA |
