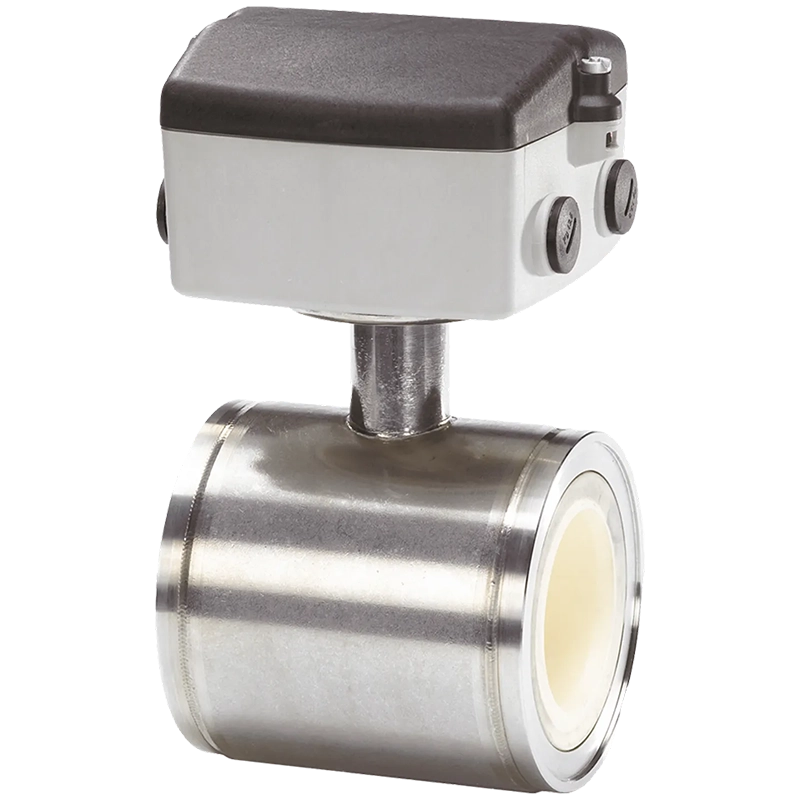

SIEMENS SITRANS FM MAG 1100 electromagnetic flow sensor
SITRANS FM MAG 1100, designed for general industry environments, has a wafer design sensor in corrosion-resistant stainless steel housing. Highly resistant liners and electrodes are suitable for harsh process conditions.
Description
| Meassuring range | 0 to 10 m/s |
| Nominal sizes | From DN 2 to DN 100 (1/12″ to 4″) |
| Accuracy | 0.2 % ±1 mm/s 0.4 % ±1 mm/s (PFA) |
| Operating pressure | Max. 40 bar (Max. 580 psi) |
| Ambient temperature | From -40 to 100 °C (-40 to 212 °F) |
| Medium temperature | From -30 to 200 °C (-22 to 390 °F) |
|---|---|
| Liners | Ceramics PFA |
| Electrodes | Platinum Hastelloy |
| Material | Stainless steel AISI 316L (1.4404) |
| Approvals | ATEX – 2 GD Zone 1, FM Class 1 div 2 |
Benefits:
- The compact wafer design meets EN 1092, DIN, and ANSI flange standards.
- Versatility: Highly resistant lining and electrode materials enable the sensor’s use with even the most extreme process media.
- High-temperature version available: Capable of operating in temperatures up to 390 °F.
- Integration with SITRANS FM portfolio: The MAG 5000/6000 transmitter can be flexibly used with all products (MAG 5100/3100/1100).
- Unique SensorProm technology: Critical, sensor-specific data is stored and passed to the transmitter, allowing for simple and flexible sensor commissioning.
- Plug & Play: Enables easy on-site replacement and commissioning of the transmitter in just minutes.
- “Hot swappable”: The transmitter can be exchanged during operation.
- Mounting flexibility: Compact or separate installation options are available.
- Validated calibration: Each Siemens flowmeter is calibrated in facilities accredited to ISO/IEC 17025, ensuring accurate flow measurement.
- Service and diagnostics: Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures field accuracy.
