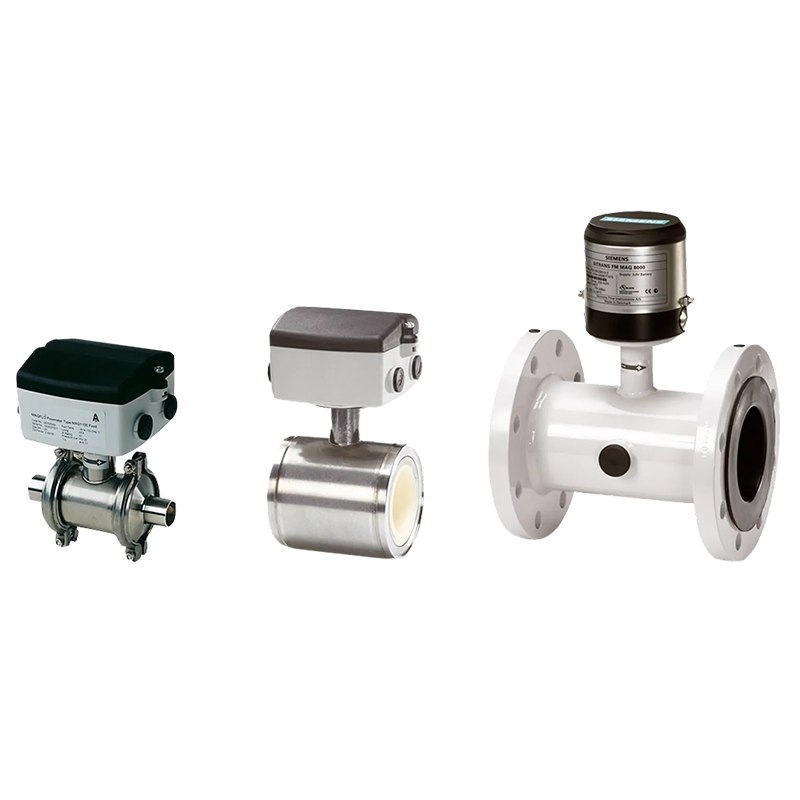

SIEMENS SITRANS FM MAG 1100 F electromagnetic flow sensor
The SITRANS FM MAG 1100 F sensor is especially designed for the food & beverage and pharmaceutical industries and is available with hygienic and flexible process connections. It meets all sanitary requirements and is 3A certified and EHEDG approved.
Description
| Meassuring range | 0 to 10 m/s |
| Nominal size | From DN 10 to DN 100 (3/8″ to 4″) |
| Accuracy | 0.2 % ± 1 mm/s 0.4 % ± 1 mm/s (PFA) |
| Operating pressure | Max. 40 bar (Max. 580 psi) |
| Ambient temperature | From -40 to 100 °C (-40 to 212 °F) |
| Medium temperature | From -30 to 150 °C (-20 to 300 °F) |
| Liners | Ceramics PFA |
| Electrodes | Platinum Hastelloy |
| Material | Stainless steel AISI 316L (1.4404) |
| Approvals | ATEX – 2 GD Zone 1, FM Class 1 div 2 3A |
Benefits:
- Flexible and unique process connections for versatile installation options.
- Standard liner options that fully cover food and beverage applications, ensuring compatibility and reliability.
- Short delivery time for standard process connections, facilitating quick implementation.
- Sanitary design for CIP/SIP cleaning, maintaining hygienic standards.
- Integration with SITRANS FM portfolio: The MAG 500/6000 transmitter can be flexibly used with all products (MAG 5100/3100/1100).
- Unique SensorProm technology: Critical, sensor-specific data is stored and passed to the transmitter, allowing for simple and flexible sensor commissioning.
- Plug & Play: Enables easy on-site replacement and commissioning of the transmitter in just minutes.
- “Hot swappable”: The transmitter can be exchanged during operation.
- Mounting flexibility: Compact or separate installation options are available.
- Validated calibration: Each Siemens flowmeter is calibrated in facilities accredited to ISO/IEC 17025, ensuring accurate flow measurement.
- Service and diagnostics: Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.
