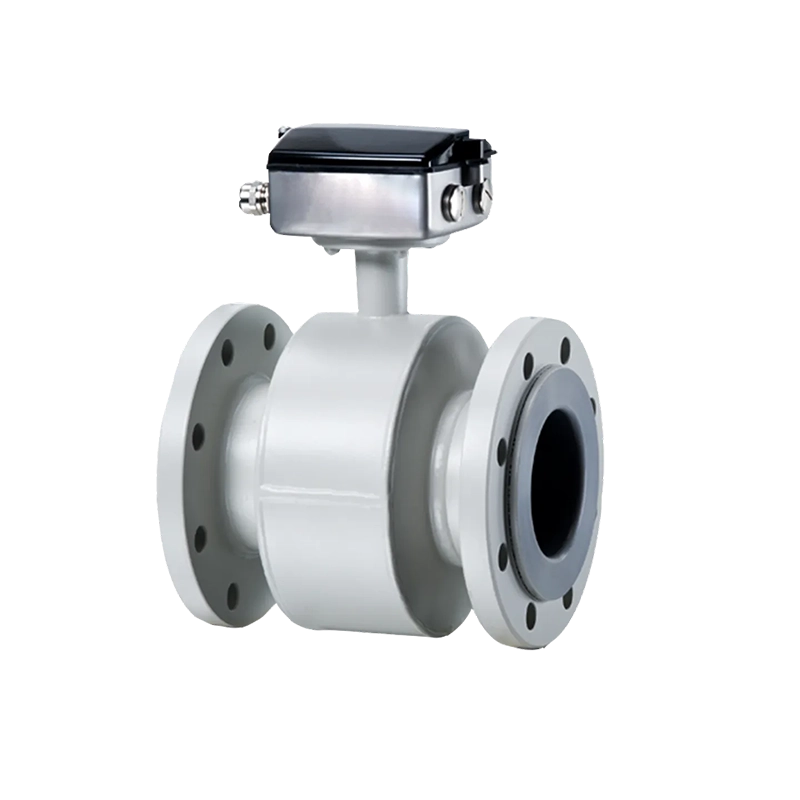

SIEMENS SITRANS FM MAG 3100 P electromagnetic flow sensor
The SITRANS FM MAG 3100 P electromagnetic flow sensor is designed to meet the most common specifications within the chemical and process industries. It has PTFE or PFA liners and Hastelloy electrodes being the ideal combination. The fully welded construction provides a ruggedness that fits almost every flow application.
Description
| Measuring range | 0 to 10 m/s |
| Nominal Sizes | DN 15 to DN 300 (½″ to 12″) |
| Accuracy | 0.2 % ± 1 mm/s |
| Operating Pressure | Max. 40 bar (Max. 580 psi) |
| Ambient Temperature | -40 to 100 °C (-40 to 212 °F) |
| Medium Temperature | -20 to 130/150 °C (-4 to 266/302 °F) |
| Liners | PFA, PTFE (Teflon) |
| Electrodes | Hastelloy C22, Hastelloy C276 |
| Material | Carbon steel with corrosion resistant two-component epoxy coating |
| General Approval | ATEX – 2 GD Zone 1, FM / CSA Class 1 div 2 |
Benefits:
- Fully welded construction that is extremely rugged and capable of withstanding special process conditions using extreme measurement electrodes.
- Universal applications: Lining and electrodes are available for every application, ensuring compatibility and versatility.
- High-temperature version available: Capable of operating in temperatures up to 356 °F.
- Approved for use in potentially explosive atmospheres, providing safety and reliability.
- Integration with SITRANS FM portfolio: The MAG 5000/6000 transmitter can be flexibly used with all products (MAG 5100/3100/1100).
- Unique SensorProm technology: Critical, sensor-specific data is stored and passed to the transmitter, allowing for simple and flexible sensor commissioning.
- Plug & Play: Enables easy on-site replacement and commissioning of the transmitter in just minutes.
- “Hot swappable”: The transmitter can be exchanged during operation.
- Mounting flexibility: Compact or separate installation options are available.
- Validated calibration: Each Siemens flowmeter is calibrated in facilities accredited to ISO/IEC 17025, ensuring accurate flow measurement.
- Service and diagnostics: Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.
