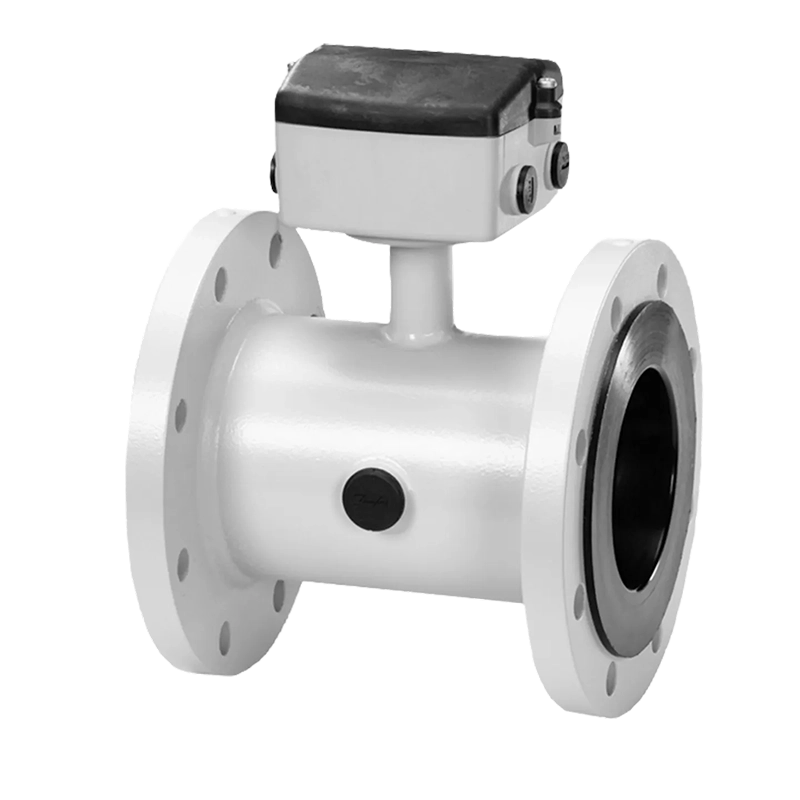

SIEMENS SITRANS FM MAG 5100 W electromagnetic flow sensor
The SITRANS FM MAG 5100 W with its patented liners of hard rubber NBR or ebonite and EPDM is a sensor for all water applications such as ground water, drinking water, cooling water, wastewater, sewage or sludge applications.
Description
| Meassuring range | 0 to 10 m/s |
| Nominal sizes | From DN 15 to DN 2000 (1″ to 78″) |
| Accuracy | 0.2 % ±2.5 mm/s |
| Operating pressure | Max. 16 bar (Max. 150 psi) |
| Ambient temperature | From -40 to 70 °C (-40 to 158 °F) |
| Medium tempreature | From -10 to 70 °C (14 to 158 °F) |
| Liners | EPDM NBR hard rubber Ebonite hard rubber |
| Electrodes | Hastelloy C-276 Built-in grounding electrodes |
| Material | Carbon steel, with corrosion resistant two-component epoxy coating |
| Drinking water wpprovals | EPDM: WRAS, NSF/ANSI Standard 61, DVGW 270, ACS and BelgAqua NBR: NSF/ANSI Standard 61, WRASEbonite: WRAS |
| Custody transfer approvals | OILM R 49 MI-001 PTB K7.2 (Germany) BEV OE12/C040 (Austria) |
| General approval | MCERTS Sira Certificate No. MC080136/09 |
Benefits:
- Zero Up and Zero Down installation capabilities for flexible installation options.
- Lining specifically designed for drinking water applications with special approvals.
- Increased low flow accuracy for water leak detection with NBR or EPDM lining.
- Suitable for underground installation and permanent immersion (IP68) or underwater installation.
- Integrated grounding electrodes eliminate the need for grounding rings in many applications.
- Short delivery time, ensuring quick implementation.
- Integration with SITRANS FM portfolio: The MAG 5000/6000 transmitter can be flexibly used with all products (MAG 5100/3100/1100).
- Unique SensorProm technology: Critical, sensor-specific data is stored and passed to the transmitter, allowing for simple and flexible sensor commissioning.
- Plug & Play: Enables easy on-site replacement and commissioning of the transmitter in just minutes.
- “Hot swappable”: The transmitter can be exchanged during operation.
- Mounting flexibility: Compact or separate installation options are available.
- Validated calibration: Each Siemens flowmeter is calibrated in facilities accredited to ISO/IEC 17025, ensuring accurate flow measurement.
- Service and diagnostics: Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.
