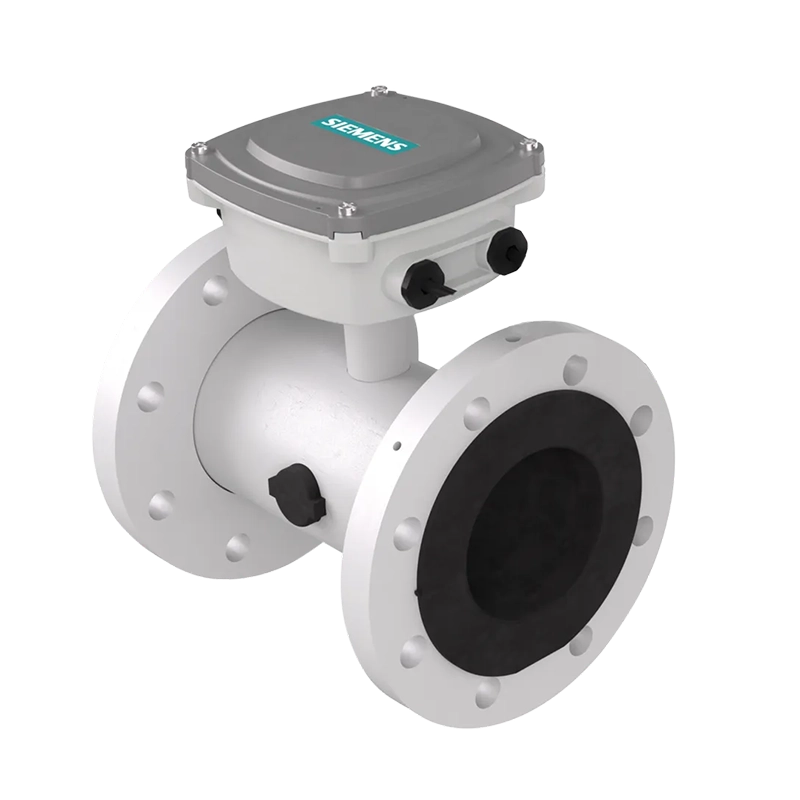

SIEMENS SITRANS FMS500 magnetic flow meter sensor
The SITRANS FMS500 sensor with hard rubber NBR and EPDM liners is designed for water applications such as wastewater treatment, water distribution and irrigation.
Description
| Measuring range | 0 to 10 m/s |
| Nominal sizes | DN 15 to DN 1200 (½″ to 48″) |
| Accuracy | Standard 0.4% of rate, option for 0.2% of rate |
| Operating pressure | Max. 40 bar (Max. 580 psi) (dependent on sensor size) |
| Ambient temperature | -20 to 70 °C (-40 to 158 °F) |
| Medium temperature | -10 to 70 °C (14 to 158 °F) |
| Liners | EPDM, NBR |
| Electrodes | Hastelloy C-276, Built-in grounding electrodes |
| Material | Carbon steel with corrosion resistant two-component epoxy coating |
| Drinking water approvals | EPDM: WRAS, NSF/ANSI Standard 61, DVGW 270, AS/NZS 4020, GB/T 5750, ACS, BelgAqua |
Benefits:
- Zero Up and Zero Down installation capabilities for convenient and flexible installation.
- EPDM lining specifically designed for drinking water applications that require special approvals.
- NBR rubber liner suitable for all water and wastewater applications.
- Increased low flow accuracy for water leak detection.
- Suitable for underground installation and permanent immersion (IP68) or underwater installation.
- Integrated grounding electrodes eliminate the need for grounding rings in many applications.
- Short delivery time, ensuring quick implementation.
- Connected to the SITRANS FMT020 transmitter, it forms the magnetic flowmeter system SITRANS FM520.
- SENSORPROMTM Technology: Provides automatic upload of start-up settings and calibration data for easy commissioning.
- Plug & Play: Allows easy on-site replacement and commissioning of the transmitter in just a few minutes.
- Mounting flexibility: Compact or remote installation options are available.
- Validated calibration: Each Siemens flowmeter is calibrated in facilities accredited to ISO/IEC 17025, ensuring accurate flow measurement.
- Service and diagnostics: Designed to allow in-situ verification for easy performance check.
