SIEMENS SITRANS P320/420

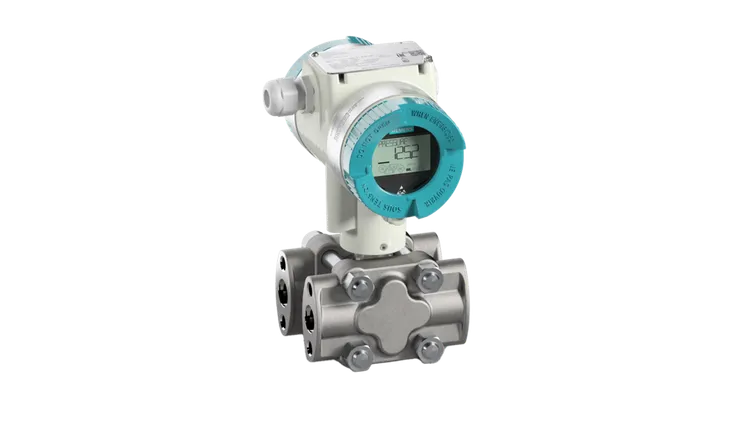

The SITRANS P320/420 pressure transmitters are the first to feature remote safety handling capabilities. This allows users to program all devices directly from the control room, rather than having to configure each individual transmitter on-site. This streamlines the commissioning process, particularly for applications requiring functional safety. Additionally, the extended test period of up to 15 years (compared to the typical 2 years) helps to minimize maintenance costs.
The SITRANS P320/420 pressure transmitters are the first to feature remote safety handling capabilities. This allows users to program all devices directly from the control room, rather than having to configure each individual transmitter on-site. This streamlines the commissioning process, particularly for applications requiring functional safety. Additionally, the extended test period of up to 15 years (compared to the typical 2 years) helps to minimize maintenance costs.
| Accuracy | 0.065 % (SITRANS P320), 0.04 % (SITRANS P420) |
| Response time |
down to 105 ms
|
| Long-term stability | ≤ 0.125 % / 5 years |
| Measuring cells | from 20 mbar to 700 bar |
| Max. Turndown | 100:1 |
| Measured medium temperature | -40 °C to +100 °C |
| Certificates/approvals | ATEX, IEC EX, FM, CSA, NEPSI and others |
| SIL-2/3 |
Developed according to IEC 61508
|
| Certification |
standards HART7 communication
|
| Communication |
4 … 20 mA / HART, PROFIBUS PA,
FOUNDATION Fieldbus
|
| Diaphragm materials |
Stainless steel, Hastelloy, Tantalum, Monel, Gold
|
