Description

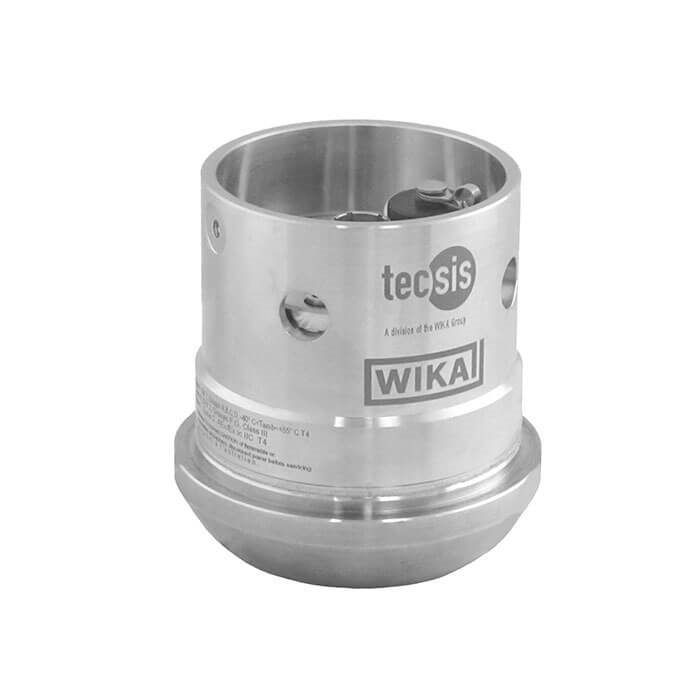

Model C9-6120
Hammer Union Pressure Transmitter
Model 1502
Applications
Oil & Gas Drilling
Mud Pumps/Mud Logging
Fracturing
Acidizing
Cementing
Standpipe
Stimulation
Well Head Measurement
Choke & Kill
Coiled Tubing
Special Features
4-20 mA, 2-wire Output
0.25% Accuracy
Shock & Vibration Resistant
Zero & Span Adjustments
All-welded Construction
Inconel X-750 Wetted Parts
Description
Model 1502 Hammer Union pressure sensor is designed for a variety of drilling and well servicing applications including cementing, choke and kill, BOPs, and hydraulic fracturing in shale oil and shale gas formations.
The Model 1502 is built to survive with Inconel X-750 wetted parts, enhanced shock and vibration resistance, a wide operating temperature, and a NEMA 4 rating. Static accuracy is 0.25%FS (BFSL) over ranges to 0-20,000 psi. The unit provides an intrinsically safe 4-20mA 2-wire output.
Download
WIKA-C9-6120
