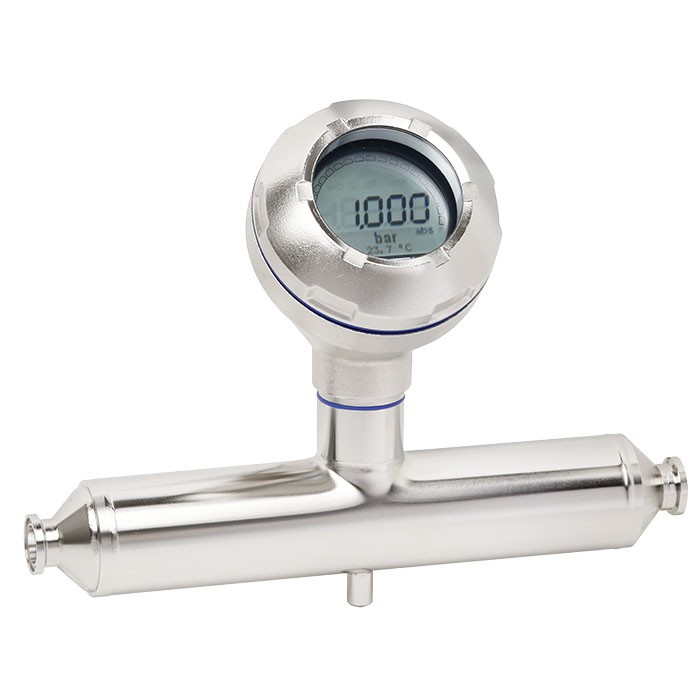

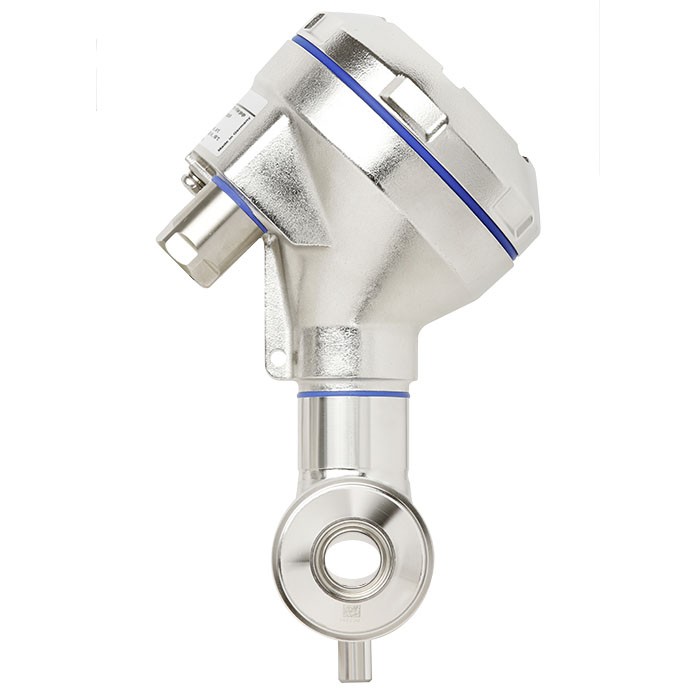

WIKA Model DMSU22SA In-line process transmitter
The certified hygienic design of the model DMSU22SA in-line process transmitter fulfils the constantly growing requirements for process monitoring on plant for sanitary applications. Measurement is done by means of a deformation of the inner sensor tube of the double-tube system due to the applied pressure. This deformation produces a signal change, which the transmitter converts into the measuring signal. This version combines the demands for digitalisation and process reliability. Versions with HART® protocol are able to transmit not only the measuring signal, but also the status of the continuous sensor monitoring of the double-tube system to the process control system as required.
Description
Model DMSU22SA
In-line process transmitter
The DMSU22SA in-line process transmitter features a certified hygienic design to meet the growing requirements for process monitoring in sanitary applications. The measurement is achieved through the deformation of the inner sensor tube in the double-tube system due to the applied pressure. This deformation generates a signal change, which the transmitter then converts into the measurement signal.
This version combines the demands for digitalization and process reliability. The HART®-enabled versions can transmit not only the measurement signal, but also the status of the continuous sensor monitoring of the double-tube system to the process control system, as required.
Applications
Hygienic in-line pressure measurement for the pharmaceutical industry and for aseptic food processing
Suitable for the production of active pharmaceutical ingredients (API)
For the monitoring of processes with sterile steam
For gases, vapour; liquid, pasty, powdery and crystallising media
Special features
Dead-space free hygienic design with thick-walled sensor tube from stainless steel
In-line pressure measurement with sensor tube without system fill fluid
Continuous sensor monitoring of the double-tube system prevents contamination of process and environment
Suitable for SIP and CIP
EHEDG-certified and 3-A-compliant
Description
The certified hygienic design of the model DMSU22SA in-line process transmitter fulfils the constantly growing requirements for process monitoring on plant for sanitary applications. Measurement is done by means of a deformation of the inner sensor tube of the double-tube system due to the applied pressure. This deformation produces a signal change, which the transmitter converts into the measuring signal. This version combines the demands for digitalisation and process reliability. Versions with HART® protocol are able to transmit not only the measuring signal, but also the status of the continuous sensor monitoring of the double-tube system to the process control system as required.
The patented sensor tube solution of the in-line process transmitter, in combination with the sensor monitoring within the double-tube system, provides optimum protection against process and environmental contamination.
The in-line process transmitter can be supplied with all common process connections for sanitary applications and fulfils the applicable standards for them, e.g. EHEDG, 3-A and ASME BPE.
This product, WIKA model DMSU22SA, includes a patented WIKA development (e.g. US2021404898A1).
